Billiard on Unusual Tables

by R. Grothmann

This notebook computes reflections on a Billard table. How many possible ways exist to reach one point from another in a round Billiard table?

The following function computes the length of a path in the complex plane from z0 to z and then to z1.

>function d(z0,z1,z) := abs(z-z0)+abs(z-z1)

Now we define a circle in the complex plane.

>t=linspace(0,2*pi,300); z=exp(1i*t);

We plot all distances between two given points via the circle.

>z0=0.5+0.5i; z1=-3/5; plot2d(t,d(z0,z1,z)):

Billiard on Unusual Tables

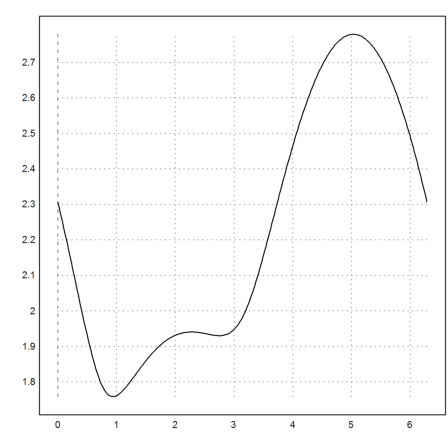

There are four local extrema, which are related to paths that obey the law of reflections.

Let us define a function, which computes the round trip over e^(it).

>function f(t,z0,z1) := d(z0,z1,exp(1i*t));

Now we use the function fextrema() to compute all local extrema.

>{mi,ma}=fextrema("f",0,2*pi,400;z0,z1); "Minima:", mi, "Maxima", ma,
Minima:
[0.938077,  2.75097]
Maxima
[2.2748,  5.03173]
>plot2d(z); ...
 hold on; mark(z0); mark(complex(z1)); hold off; ...
 hold on; plot([z0,exp(1i*mi[1]),z1]); hold off; ...
 hold on; plot([z0,exp(1i*mi[2]),z1]); hold off; ...
 hold on; plot([z0,exp(1i*ma[1]),z1]); hold off; ...
 hold on; plot([z0,exp(1i*ma[2]),z1]); hold off:

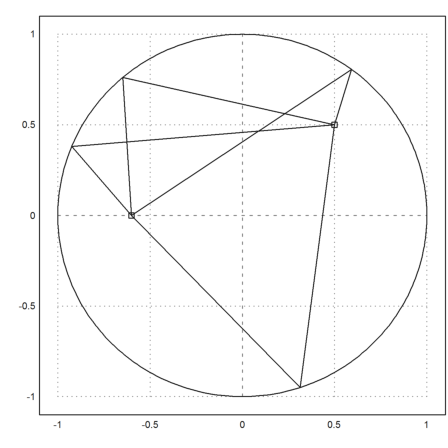

We see that there are four ways to play a Billiard ball with one reflection from z0 zo z1.

We want to define a function that does the same for a general curve. First we define our curve.

>function gamma0(t) := exp(1i*t);

Now we define a function for the round trip, calling the curve function by name.

>function f1 (t,fff,z0,z1) := d(z0,z1,fff(t));

Next, we make a function, which plots the curve, computes the minima and maxima, and plots the distances.

>function billiard (fgamma,z0,z1) ...
 keepsquare(1);
 t=linspace(0,2*pi,300); xplot(fgamma(t));
 hold on;
 mark(complex(z0)); mark(complex(z1));
 {mi,ma}=fextrema("f1",0,2*pi,300;fgamma,z0,z1);
 loop 1 to cols(mi);
    plot([z0,fgamma(mi[#]),z1]);
 end;
 loop 1 to cols(ma);
    plot([z0,fgamma(ma[#]),z1]);
 end;
 keepsquare(0);
 hold off;
 endfunction
>billiard("gamma0",z0,z1):

Billiard on Unusual Tables

Elliptical Table

Now we take an elliptic table.

>function gamma1(t) := cos(t)+0.8i*sin(t); ...

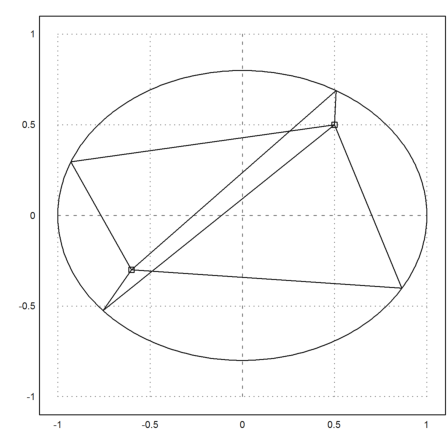

 billiard("gamma1",-0.6-0.3i,0.5+0.5i):

Billiard on Unusual Tables

Weird Table

Finally, something weird.

>function gamma2(t) := (cos(t)+1i*sin(t))*(1+sin(5*t)^2/10); ...

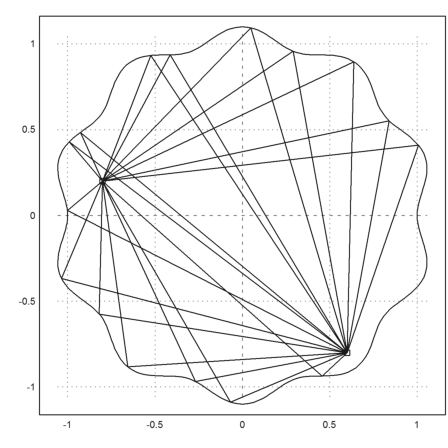

 billiard("gamma2",-0.8+0.2i,0.6-0.8i):
