# Donat Math

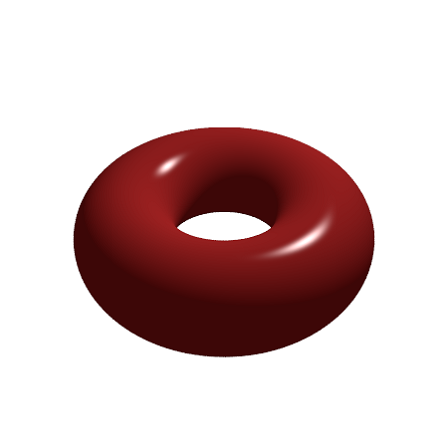

First let us make a really nice donat. We use Povray for that with Phong shading. These commands work only, if you have installed Povray properly.

```>load povray;
>povstart(angle=0,height=40°);
```

The following is a function to make donats.

```>function povdonat (r1,r2,look="") := "torus {"+r1+","+r2+look+"}";
>writeln(povobject(povdonat(1,0.5),povlook(red,>phong),xrotate(90°)));
>povend();
``` The torus is the image of a cylinder under the following mapping.

```>function phi(x,t,z) &= [x*cos(t),x*sin(t),z]
```
```                       [cos(t) x, sin(t) x, z]

```

For Euler, we need the x-, y-, and z-coordinates of this mapping.

```>function phix(x,t,z) &= phi(x,t,z);
>function phiy(x,t,z) &= phi(x,t,z);
>function phiz(x,t,z) &= phi(x,t,z);
```

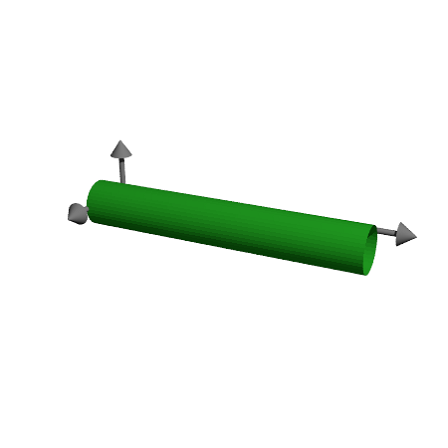

Now we generate a cylinder with a circle centered at x=R, y=0, z=0 of height 2pi.

```>s=linspace(0,2pi,40); t=s';
>R=1; r=0.5;
>x=R+r*cos(s); y=t; z=r*sin(s);
>pov3d(x,y,z,zoom=4);

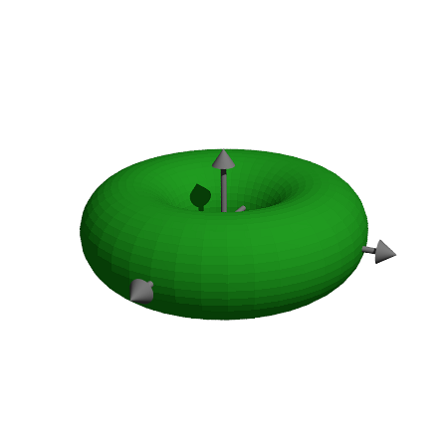

``` The transformation phi maps this cylinder to the donat. Each point is mapped with phi.

```>X=phix(x,y,z); Y=phiy(x,y,z); Z=phiz(x,y,z);
>pov3d(X,Y,Z,zoom=3.8);

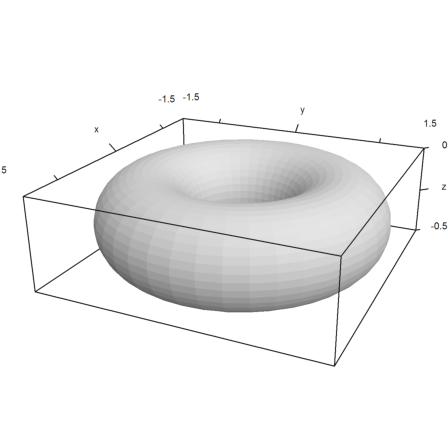

``` Here is the same image in Euler. We take -Z, since the default Euler shading is based on the correct side of the surface.

```>plot3d(X,Y,-Z,>hue,zoom=3.6):

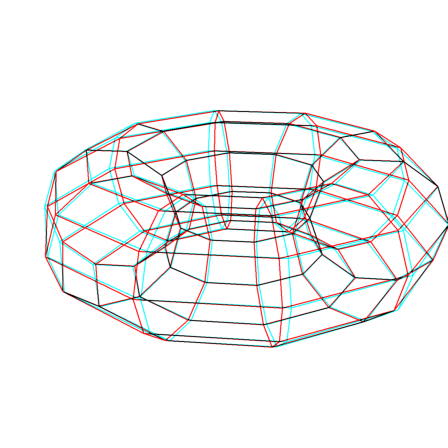

``` The following image is an Anagylph for red/cyan glasses showing the wire frame of torus with less details

```>s=linspace(0,2pi,10); t=s'; ...
R=1; r=0.5; ...
X=phix(R+r*cos(s),t,r*sin(s)); ...
Y=phiy(R+r*cos(s),t,r*sin(s)); ...
Z=phiz(R+r*cos(s),t,r*sin(s)); ...
plot3d(X,Y,Z,>wire,zoom=5,<frame,>anaglyph):
``` You need red/cyan glasses to appreciate the image.

# Volume and Surface

The volume of a Donat can be computed with the Pappus' centroid theorem. It states for an area A in a plane rotated around one axis, which does not intersect the area and is in the same plane, that where A is the area, and d is the length of the circle which the center of gravity of A travels along at one rotation.

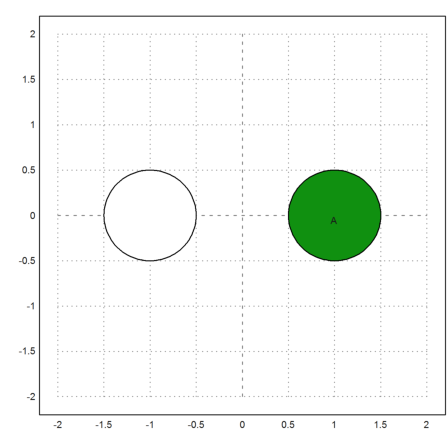

For the donat with major radius 1 and minor radius 1/2, we rotate the following area A.

```>t=linspace(0,2pi,100);  ...
plot2d(1+cos(t)/2,sin(t)/2,>filled,r=2);   ...
ctext("A",toscreen(1,0)); ...
insimg;
``` With major radius R and minor radius r, we get Pappus' formula can be derived by elementary means, if we think of a small element dA of the area A at radius r. Rotating it yields a small tube of volume Summing up, we see that we have to integrate r over A, which is equal to the mean value of r on A. Indeed is the x-coordinate of the center of gravity of A.

```>2*pi^2*1*0.5^2
```
```4.93480220054
```

Using the transformation formula is also easy. In fact the determinant is equal to x.

```>&jacobian(phi(x,y,z),[x,y,z]), &det(%)|trigreduce
```
```                      [ cos(y)  - x sin(y)  0 ]
[                       ]
[ sin(y)   x cos(y)   0 ]
[                       ]
[   0         0       1 ]

x

```

So we have to integrate x over the cylinder. The surface of the Torus can be computed with the second theorem of Pappus. where L is the length of path around A, and sc is the center of gravity of the path. For our Torus we get ```>4*pi^2*1*0.5
```
```19.7392088022
```

For a Torus (like for a sphere) changing the minor radius by some small value dr changes the Volume by Sdr. Thus the surface is the derivative of the Volume to r.

```>&diff(2*pi^2*R*r^2,r)
```
```                                  2
4 pi  r R

```

# Cuts

We like to cut the donat with planes y=c, and to study these cuts.

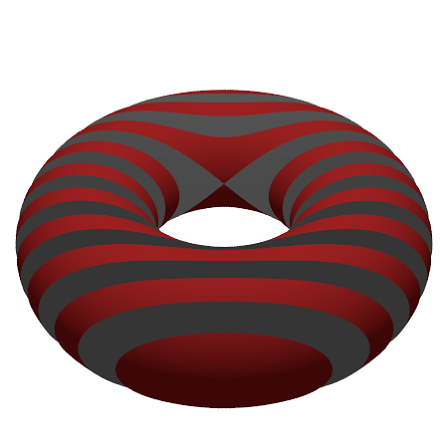

The following commands call Povray to produce a sliced version of our donat.

```>povstart(angle=0°,height=40°,light=[0,-0.1,1],zoom=3.6);
```

First the donat.

```>donat=povobject(povdonat(1,0.5),xrotate(90°));
```

Now we define a function, which produces the cylinders for the cut.

```>function cut(y1,y2) := povcylinder([0,y1,0],[0,y2,0],2);
```

Now a vector for the cuts.

```>a=linspace(-1.5,1.5,21);
```

The cutting cylinders are stored in a vector of strings.

```>s=[]; for i=1 to (length(a)-1)/2; s=s|cut(a[2*i],a[2*i+1]); end;
```

Form the union of the cuts.

```>cuts=povunion(s);
```

And write the donut minus the cuts to the file.

```>writeln(povdifference(donat,cuts,povlook(red)));
>povend();
``` We cannot do the same in Euler. But there is an implicit plot, which needs a formula for the surface of the donat. To derive this formula we compute the distance of a point to the center circle of the donat. This must be equal to r.

```>expr &= (sqrt(x^2+y^2)-R)^2+z^2-r^2
```
```                           2    2      2    2    2
(sqrt(y  + x ) - R)  + z  - r

```

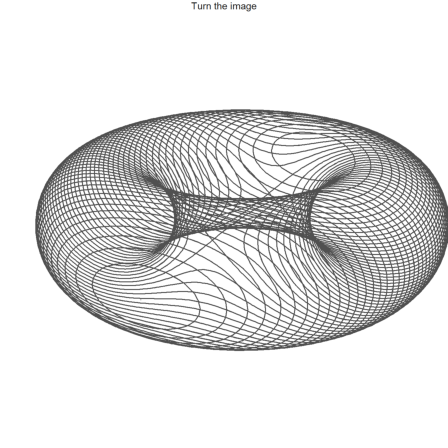

```>plot3d(expr,implicit=1,r=1.5,<frame,zoom=5,>user,title="Turn the image"):

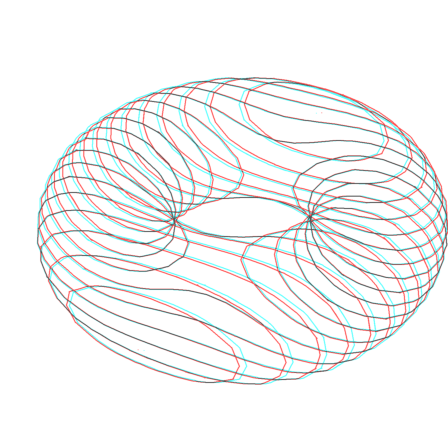

``` For the following, you need your red/cyan glasses again.

```>plot3d(expr,implicit=1,r=1.5,<frame,zoom=5,height=40°,n=20,>anaglyph):
``` For the implicit plots of the cuts, we need to substitute y=c and then transform with z=y into the x-y-plane.

```>expr1 &= expr with y=c with z=y
```
```                           2    2      2    2    2
(sqrt(x  + c ) - R)  + y  - r

```

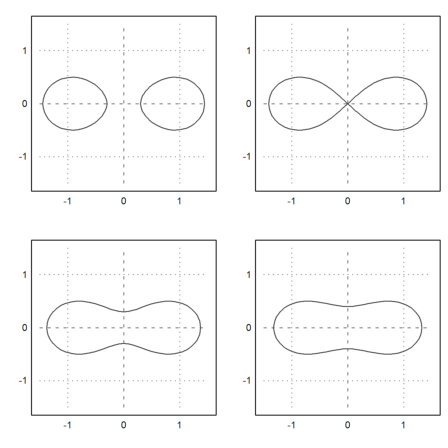

Here are some cuts for y=0.4,0.5,0.6,0.7.

```>figure(2,2); ...
for k=1:4; figure(k); plot2d(&expr1 with c=0.3+k*0.1,r=1.5,level=0); end; ...
figure(0):
