# Gauss Integration

by R. Grothmann

Gauss integration is defined in Euler in the gauss() function. We like to show, how to derive a Gauss formula.

First we need the Legendre polynomials. These polynomials are orthogonal on [-1,1]. We simply use Gram-Schmidt. To ease the compuation, we define the scalar product in Maxima.

```>function sp(f,g) &&= integrate(f*g,x,-1,1)
```
```                      integrate(f g, x, - 1, 1)

```

Then we need p0 to p4.

```>p0 &= 1;
>p1 &= x;
>p2 &= x^2-sp(x^2,p0)/sp(p0,p0)*p0
```
```                                 2   1
x  - -
3

```
```>p3 &= x^3-sp(x^3,p1)/sp(p1,p1)*p1
```
```                                3   3 x
x  - ---
5

```
```>p4 &= x^4-sp(x^4,p2)/sp(p2,p2)*p2-sp(x^4,p0)/sp(p0,p0)*p0 | ratsimp
```
```                              4       2
35 x  - 30 x  + 3
-----------------
35

```

There is a function legendre(), which computes these polynomials using a recursion formula.

```>fracprint(legendre(4)*8)
```
```[3,  0,  -30,  0,  35]
```

This agrees with the result of Maxima.

```>&expand(legendre_p(4,x)*8)
```
```                              4       2
35 x  - 30 x  + 3

```

We need the zeros of p4. Maxima can provide these zeros in exact form.

```>&solve(p4), xnode=%()
```
```              sqrt(2 sqrt(30) + 15)      sqrt(2 sqrt(30) + 15)
[x = - ---------------------, x = ---------------------,
sqrt(35)                   sqrt(35)
sqrt(15 - 2 sqrt(30))      sqrt(15 - 2 sqrt(30))
x = - ---------------------, x = ---------------------]
sqrt(35)                   sqrt(35)

[-0.861136,  0.861136,  -0.339981,  0.339981]
```

Now we need to define the coefficients of the formula. We solve the equation for The matrix language of Euler lets us easily define a linear system for this.

```>A=xnode^((0:3)'); b=(2*[1,0,1/3,0])'; ...
alpha=(A\b)'
```
```[0.347855,  0.347855,  0.652145,  0.652145]
```

These values can also be obtained by the Christoffel function in the following way. For this, the polynomials must be normalized with respect to the L2-norm.

```>function C4(x) &= 1/sum(legendre_p(n,x)^2/ ...
integrate(legendre_p(n,x)^2,x,-1,1),n,0,3) | ratsimp
```
```                                  8
---------------------------
6        4       2
175 x  - 165 x  + 45 x  + 9

```

Indeed, we get exactly the same values.

```>C4(xnode)
```
```[0.347855,  0.347855,  0.652145,  0.652145]
```

We can test this for the interval [-1,1].

```>function map gauss5test (f) := sum(f(xnode)*alpha); ...
fraction gauss5test(["1","x","x^2","x^3","x^4","x^5","x^6","x^7","x^8"])
```
```[2,  0,  2/3,  0,  2/5,  0,  2/7,  0,  258/1225]
```

The result is exact for polynomials of degree 7.

We define a function for this integration using the Euler matrix language. The matrix X in the following function, contains all knots in all subintervals. Knots with equal coefficients are collected in each row.

```>function gauss5test (f,a:number,b:number,n=1,xn=xnode,al=alpha) ...
h=(b-a)/n;
if n>1 then x=linspace(a+h/2,b-h/2,n-1); else x=a+h/2; endif;
X=x-(h/2*xn)';
return sum(al.f(X))*h/2
endfunction
```

Test.

```>fracprint(gauss5test("x^6",0,1))
```
```1/7
```

Let us test some more functions. The n=10 subintervals are 40 function evaluations.

```>longestformat; gauss5test("exp(x)",0,1,10)-(E-1)
```
```4.440892098500626e-016
```

The function is already defined in Euler.

```>longestformat; gauss5("exp(x)",0,1,10)-(E-1)
```
```4.440892098500626e-016
```

Note that The Simpson method is not so good, but takes half as many function evaluations.

```>simpson("exp(x)",0,1,10)-(E-1)
```
```5.964481175624314e-008
```

The Gauss algorithm with 10 knots gets the same result with only 10 evaluations.

```>gauss("exp(x)",0,1)-(E-1)
```
```2.220446049250313e-016
```

Here is a test with the Gauss distribution.

```>gauss5("exp(-x^2/2)",0,10,n=10)/sqrt(2*pi)
```
```0.5000000000028569
```
```>gauss("exp(-x^2/2)",0,10,n=10)/sqrt(2*pi)
```
```0.5000000000000001
```

# Legendre Polynomials

In the following, we compute the Legendre polynimals explicitely using the symbolic functions of Euler and Maxima.

The Legendre satisfy the following recursion formula. To program such a recursion in Maxima, we define the following purely symbolic function with a function body containing a block of statements.

```>function L(x,n) &&= block ( ...
if n=0 then 1 ...
else if n=1 then x ...
else ((2*n-1)*x*L(x,n-1)-(n-1)*L(x,n-2))/n )
```
```       block(if n = 0 then 1 else (if n = 1 then x
(2 n - 1) x L(x, n - 1) - (n - 1) L(x, n - 2)
else ---------------------------------------------))
n

```
```>&L(x,2)
```
```                                  2
3 x  - 1
--------
2

```

Let us check the orthogonality.

```>&integrate(L(x,2)*L(x,1),x,-1,1)
```
```                                  0

```
```>&integrate(L(x,2)*L(x,0),x,-1,1)
```
```                                  0

```
```>&integrate(L(x,3)*L(x,2),x,-1,1)
```
```                                  0

```

The norm of L(x,n) is 2/(2n+1).

```>&integrate(L(x,2)*L(x,2),x,-1,1)
```
```                                  2
-
5

```

The Legendre polynomials satisfy the following differential equation.

```>eq &= -2*x*'diff(y,x)+(1-x^2)*'diff(y,x,2)+n*(n+1)*y=0
```
```                         2
2  d y       dy
(1 - x ) --- - 2 x -- + n (n + 1) y = 0
2       dx
dx

```

Test for n=3

```>& eq | [n=3,y=L(x,3)], & % | nouns | ratsimp
```
```                               2
5 x (3 x  - 1)
2   -------------- - 2 x
2   d          2
(1 - x ) (--- (--------------------))
2           3
dx
2
5 x (3 x  - 1)
-------------- - 2 x                2
d         2                     5 x (3 x  - 1)
- 2 x (-- (--------------------)) + 4 (-------------- - 2 x) = 0
dx           3                        2

0 = 0

```

The main Maxima command ode2 cannot solve this.

```>& eq | n=2, &ode2(%,y,x)
```
```                             2
2  d y       dy
(1 - x ) --- - 2 x -- + 6 y = 0
2       dx
dx

false

```

The two term recursive definition can get ineffective. So we replace it with a loop.

```>function L(x,n) &&= block( if n=0 then 1 else block([y:[1,x]], ...
for i:2 thru n do y:[y,expand(((2*i-1)*x*y-(i-1)*y)/i)], y));
```

Test.

```>& L(x,2) | ratsimp
```
```                                  2
3 x  - 1
--------
2

```

We can now use polynomials of high degree.

```>plot2d(& L(x,20) | expand,-1,1):
``` # Another weight function

For other weights, we could do just the same.

```>function sp(f,g) &&= integrate(f*g*exp(-x),x,-1,1)
```
```                                   - x
integrate(f g E   , x, - 1, 1)

```

Then we need p0 to p4.

```>p0 &= 1;
>p1 &= x-sp(x,p0)/sp(p0,p0)|ratsimp
```
```                              2
(E  - 1) x + 2
--------------
2
E  - 1

```
```>p2 &= x^2-sp(x^2,p1)/sp(p1,p1)*p1-sp(x^2,p0)/sp(p0,p0)*p0|ratsimp
```
```          4      2       2         4       2           4      2
(E  - 6 E  + 1) x  + (- 2 E  + 16 E  - 6) x - E  + 6 E  + 7
-----------------------------------------------------------
4      2
E  - 6 E  + 1

```

If we continue like this, we get fairly complicated polynomials. We like to demonstrate, how to use numerical integration instead.

First, we define the function to integrate.

```>function p(x,i) := x^i*exp(-x)
```

Then the integral.

```>function map a(i) := gauss("p",-1,1,100;i)
```

A test.

```>a(5)
```
```-0.3242973696922066
```
```>&integrate(x^5*exp(-x),x,-1,1), %()
```
```                                       - 1
44 E - 326 E

-0.3242973696922178
```

It becomes obvious, that the result is not perfect. We either have to live with this, or to derive and use a recursion formula, or the exact symbolic method.

We need the 10-th orthogonal polynomial. To compute it, we use the Gram matrix.

```>A=a((0:10)+(0:9)')_1; b=zeros(10,1)_1;
>p=xlgs(A,b)';
```

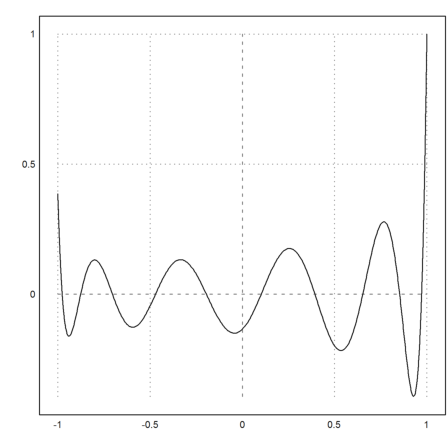

Here is a plot of this polynomial.

```>plot2d("polyval(p,x)",-1,1):
``` Let us test the orthogonality.

```>for i=0 to 9; gauss("x^i*polyval(p,x)*exp(-x)",-1,1,100), end;
```
```1.23084875625068e-014
-7.745415420146173e-014
-1.233568802661011e-014
3.418543226274551e-014
3.103073353827313e-016
-2.974398505273257e-014
-1.885935851930754e-014
6.401379426534959e-014
3.972544515562504e-014
-5.778488798569015e-014
```

Next we need the zeros.

```>xn=sort(real(polysolve(p)))
```
```[-0.9761983950159177,  -0.876341759205208,  -0.7038368925296208,
-0.4708613994245012,  -0.1948808338591103,  0.1018814014714706,
0.3935411401555917,  0.6524949822560991,  0.8523013113814679,
0.9712722677116907]
```

Then we need the coefficients, which make the integration exact for polynomials up to degree 9.

```>M=xn^((0:9)'); b=a((0:9)');
>al=xlgs(M,b)'
```
```[0.1616042035976784,  0.3308952772834531,  0.4148551396265188,
0.4128502394503031,  0.3529200553213233,  0.2698111100739772,
0.1888527845927684,  0.1216033541103824,  0.06925902427714205,
0.02775119895405546]
```

We can use the same code as above to define the Gauss integrator.

```>function gauss10exp (f,a:number,b:number,n=1,xn=xn,al=al) ...
h=(b-a)/n;
if n>1 then x=linspace(a+h/2,b-h/2,n-1); else x=a+h/2; endif;
X=x-(h/2*xn)';
return sum(al.f(X))*h/2
endfunction
```

Let us test with the integral of cos(x)*exp(-x).

```>gauss10exp("cos(x)",-1,1)
```
```1.933421496200713
```

This is the Gauß formula for one sub-interval.

```>sum(cos(xn)*al)
```
```1.933421496200713
```

The result is absolutely exact to all digits.

```>&integrate(cos(x)*exp(-x),x,-1,1); %()
```
```1.933421496200713
```
