# Heron Formula

Heron Formula

by R. Grothmann

We compute the area of a triangle with sides a, b and c. First set points into (0,0), (a,0) and (x,y), which form such a triangle. I.e., we solve

for x and y.

```>sol &= solve([x^2+y^2=b^2,(x-a)^2+y^2=c^2],[x,y])
```
```                2    2    2
- c  + b  + a
[[x = --------------, y =
2 a
4      2  2      2  2    4      2  2    4
sqrt(- c  + 2 b  c  + 2 a  c  - b  + 2 a  b  - a )
- --------------------------------------------------],
2 a
2    2    2
- c  + b  + a
[x = --------------, y =
2 a
4      2  2      2  2    4      2  2    4
sqrt(- c  + 2 b  c  + 2 a  c  - b  + 2 a  b  - a )
--------------------------------------------------]]
2 a

```

Extract the solution y.

```>ysol &= y with sol[2][2]
```
```                  4      2  2      2  2    4      2  2    4
sqrt(- c  + 2 b  c  + 2 a  c  - b  + 2 a  b  - a )
--------------------------------------------------
2 a

```

We get the Heron formula.

```>function F(a,b,c) &= sqrt(factor((ysol*a/2)^2))
```
```       sqrt((- c + b + a) (c - b + a) (c + b - a) (c + b + a))
-------------------------------------------------------
4

```

Of course, each rectangular triangle is a well known case.

```>F(3,4,5)
```
```6
```

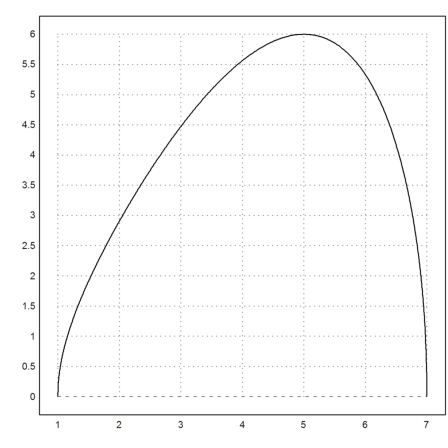

And it is also obvious, that this is the triangle with maximal area and the two sides 3 and 4.

```>plot2d(&F(3,4,x),1,7):
```

The general case works too.

```>&solve(diff(F(a,b,c)^2,c)=0,c)
```
```                        2    2             2    2
[c = - sqrt(b  + a ), c = sqrt(b  + a ), c = 0]

```

Now let us find the set of all points where b+c=d for some constant d. It is well known that this is an ellipse.

```>s1 &= subst(d-c,b,sol[2])
```
```                   2    2    2
(d - c)  - c  + a
[x = ------------------, y =
2 a
4      2        2      2        2    4      2  2    4
sqrt(- (d - c)  + 2 c  (d - c)  + 2 a  (d - c)  - c  + 2 a  c  - a )
--------------------------------------------------------------------]
2 a

```

And make functions of this.

```>function fx(a,c,d) &= rhs(s1[1]), function fy(a,c,d) &= rhs(s1[2])
```
```                                 2    2    2
(d - c)  - c  + a
------------------
2 a

4      2        2      2        2    4      2  2    4
sqrt(- (d - c)  + 2 c  (d - c)  + 2 a  (d - c)  - c  + 2 a  c  - a )
--------------------------------------------------------------------
2 a

```

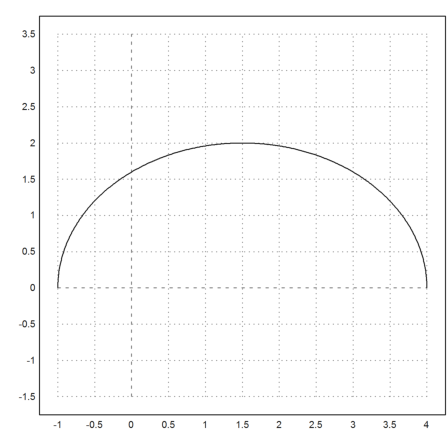

Now we can draw the set. The side b varies from 1 to 4. It is well known that we get an ellipse.

```>plot2d(&fx(3,x,5),&fy(3,x,5),xmin=1,xmax=4,square=1):
```

We can check the general equation for this ellipse, i.e.

where (xm,ym) is the center, and u and v are the half axes.

```>&ratsimp((fx(a,c,d)-a/2)^2/u^2+fy(a,c,d)^2/v^2 with [u=d/2,v=sqrt(d^2-a^2)/2])
```
```                                  1

```

We see that the height and thus the area of the triangle is maximal for x=0. Thus the area of a triangle with a+b+c=d is maximal, if it is equilateral. We wish to derive this analytically.

```>eqns &= [diff(F(a,b,d-(a+b))^2,a)=0,diff(F(a,b,d-(a+b))^2,b)=0]
```
```        d (d - 2 a) (d - 2 b)   (- d + 2 b + 2 a) d (d - 2 b)
[--------------------- - ----------------------------- = 0,
8                           8
d (d - 2 a) (d - 2 b)   (- d + 2 b + 2 a) d (d - 2 a)
--------------------- - ----------------------------- = 0]
8                           8

```

We get some minima, which belong to triangles with one side 0, and the solution a=b=c=d/3.

```>&solve(eqns,[a,b])
```
```             d      d               d        d
[[a = -, b = -], [a = 0, b = -], [a = -, b = 0],
3      3               2        2
d      d
[a = -, b = -]]
2      2

```

There is also the Lagrange method, maximizing F(a,b,c)^2 with respect to a+b+d=d.

```>&solve([diff(F(a,b,c)^2,a)=la,diff(F(a,b,c)^2,b)=la, ...
diff(F(a,b,c)^2,c)=la,a+b+c=d],[a,b,c,la])
```
```                    d      d                d             d
[[a = 0, b = -, c = -, la = 0], [a = -, b = 0, c = -, la = 0],
2      2                2             2
3
d      d                       d      d      d       d
[a = -, b = -, c = 0, la = 0], [a = -, b = -, c = -, la = ---]]
2      2                       3      3      3       108

```

We can make a plot of the situation with the utility functions in geometry.e.

```>load geometry;
```

First set the points in Maxima.

```>A &= at([x,y],sol[2])
```
```            2    2    2
- c  + b  + a
[--------------,
2 a
4      2  2      2  2    4      2  2    4
sqrt(- c  + 2 b  c  + 2 a  c  - b  + 2 a  b  - a )
--------------------------------------------------]
2 a

```
```>B &= [0,0], C &= [a,0]
```
```                                [0, 0]

[a, 0]

```

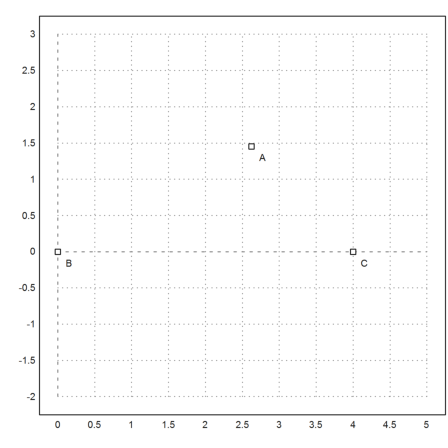

Then set the plot range, and plot the points.

```>setPlotRange(0,5,-2,3); ...
a=4; b=3; c=2; ...
plotPoint(mxmeval("B"),"B"); plotPoint(mxmeval("C"),"C"); ...
plotPoint(mxmeval("A"),"A"):
```

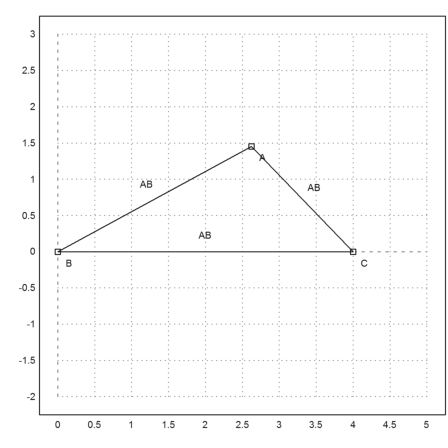

Plot the segments.

```>plotSegment(mxmeval("A"),mxmeval("C")); ...
plotSegment(mxmeval("B"),mxmeval("C")); ...
plotSegment(mxmeval("B"),mxmeval("A")):
```

Compute the middle perpendicular in Maxima.

```>h &= middlePerpendicular(A,B); g &= middlePerpendicular(B,C);
```

And the center of the circumference.

```>U &= lineIntersection(h,g);
```

We get the formula for the radius of the circumcircle.

```>&assume(a>0,b>0,c>0); & distance(U,B) | radcan
```
```
I a b c
---------------------------------------------------------------
sqrt(c - b - a) sqrt(c - b + a) sqrt(c + b - a) sqrt(c + b + a)

```

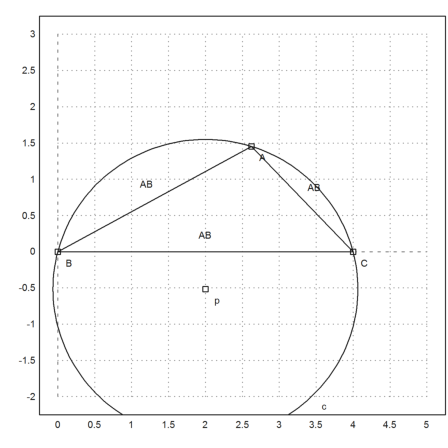

Let us add this to the plot.

```>plotPoint(U()); ...
plotCircle(circleWithCenter(mxmeval("U"),mxmeval("distance(U,C)"))):
```

Using geometry, we derive the simple formula

for the radius. We can check, if this is really true with Maxima. Maxima will factor this only if we square it.

```>& c^2/sin(computeAngle(A,B,C))^2  | factor
```
```                                 2  2  2
4 a  b  c
- -----------------------------------------------
(c - b - a) (c - b + a) (c + b - a) (c + b + a)

```
