# Newton-Algorithm for two Variables

We solve  ```>function f([x,y]) &= [x^2+y^2-10,x+y-1]
```
```                        2    2
[y  + x  - 10, y + x - 1]

```

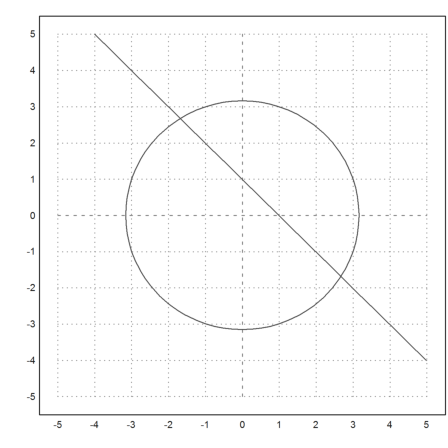

Euler can plot the solutions of both equations.

```>plot2d(&f(x,y),level=0,r=5); ...
``` The intersections are the solutions.

To start the Newton algorithm we need the Jacobian.

```>function Df([x,y]) &= jacobian(f(x,y),[x,y])
```
```                             [ 2 x  2 y ]
[          ]
[  1    1  ]

```

Now, there is the newton2 function, which does the iteration.

It needs to function f(v) and Df(v). That is, why we define f and Df with f([x,y]) and Df([x,y]). Those functions can be used with vectors or two elements.

```>newton2("f","Df",[-3,3])
```
```[-1.67945,  2.67945]
```

We want to simulate the Newton iteration step by step. So we define the iterating function.

```>function fiter ([x,y]) &= [x,y]-invert(Df(x,y)).f(x,y)
```
```               [    2    2                            ]
[ - y  - x  + 10   2 y (y + x - 1)     ]
[ -------------- + --------------- + x ]
[   2 x - 2 y         2 x - 2 y        ]
[                                      ]
[   2    2                             ]
[  y  + x  - 10   2 x (y + x - 1)      ]
[  ------------ - --------------- + y  ]
[   2 x - 2 y        2 x - 2 y         ]

```
```>&factor(fiter(x,y))
```
```                       [    2          2      ]
[ - y  + 2 y - x  - 10 ]
[ -------------------- ]
[      2 (y - x)       ]
[                      ]
[   2    2             ]
[  y  + x  - 2 x + 10  ]
[  ------------------  ]
[      2 (y - x)       ]

```

Maxima returns a column vector. We need a row vector as input and output. So we define an iteration function g.

```>function g(v) := fiter(v)'
```

Then we can iterate using the iterate() function.

```>iterate("g",[-3.2,3],10)
```
```         -3.2             3
-1.87419       2.87419
-1.68744       2.68744
-1.67946       2.67946
-1.67945       2.67945
-1.67945       2.67945
-1.67945       2.67945
-1.67945       2.67945
-1.67945       2.67945
-1.67945       2.67945
-1.67945       2.67945
```

Another starting point yields the other solution.

```>iterate("g",[1,-2],10)
```
```            1            -2
3.16667      -2.16667
2.72396      -1.72396
2.67989      -1.67989
2.67945      -1.67945
2.67945      -1.67945
2.67945      -1.67945
2.67945      -1.67945
2.67945      -1.67945
2.67945      -1.67945
2.67945      -1.67945
```

Of course, we can also solve this example symbolically.

```>&solve(f(x,y)), %()
```
```             1 - sqrt(19)      sqrt(19) + 1
[[y = ------------, x = ------------],
2                 2
sqrt(19) + 1      1 - sqrt(19)
[y = ------------, x = ------------]]
2                 2

[-1.67945,  2.67945,  2.67945,  -1.67945]
```

There is also the Broyden algorithm, which does not need the derivative. It is a generalization of the Secant algorithm for more then one variable.

```>broyden("f",[-3,2])
```
```[-1.67945,  2.67945]
```

With the interval Newton method, we even get a proved inclusion of the zero.

```>inewton2("f","Df",[-3,1])
```
```[ ~-1.679449471770339,-1.679449471770335~,
~2.679449471770335,2.679449471770338~ ]
```
